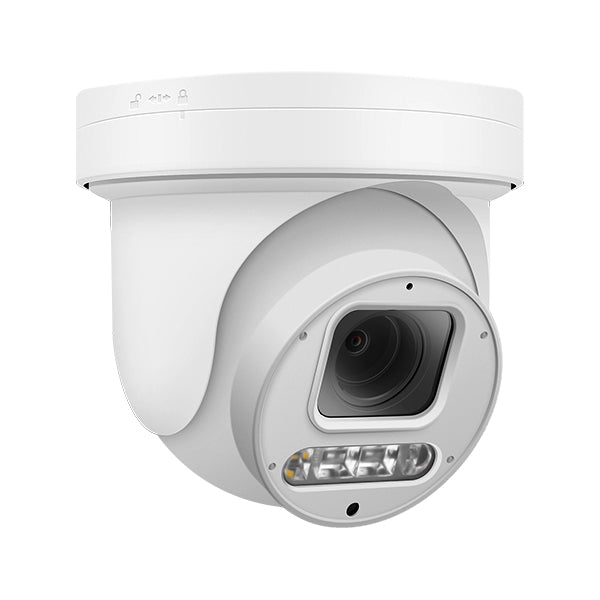

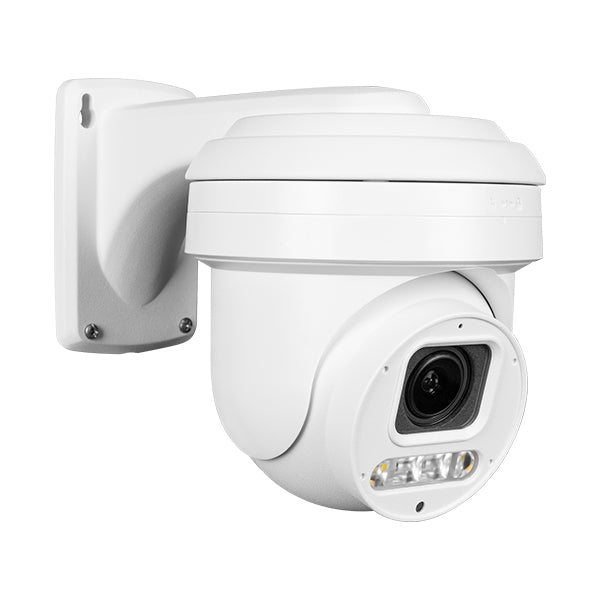

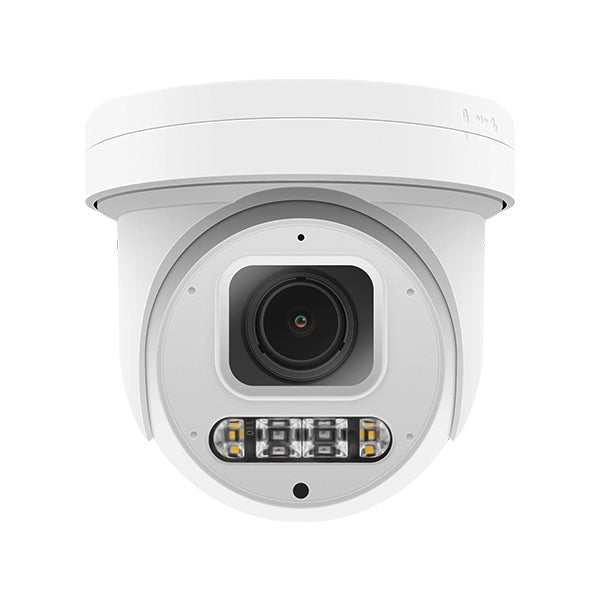

6MP Human and Vehicle Detection IR&Warm light IP PTZ dome camera JL716IRC-5X-HS
6MP Human and Vehicle Detection IR&Warm light IP PTZ dome camera JL716IRC-5X-HS
Model |
JL716IRC-5X-HS |
Camera |
|
Image Sensor |
1/2.8" Sony CMOS |
Effective Pixels |
6 megapixels |
Electronic Shutter |
AUTO, 1/10s ~ 1/100000s |
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
Day/Night |
Auto/Color/(B/W)/Timing |
WDR |
Digital WDR |
White Balance |
Auto/Manual |
BLC /HLC |
Support |
DNR |
2D/3D DNR |
Other |
Image adjust , Flip |
Encode |
|
Video Standard |
H.265+/H.265/H.264 |
Video Resolution |
Main Stream: 25fps@6MP(3072*2048), 30fps@4MP/3MP/1080P/720P Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
Audio Standard |
G.711-u/G.711-a/AAC |
Two-way Audio |
Yes |
Smart Detection |
Smart Human and Vehicle Detection |
Micro-SD Slot |
Max. 512G |
Reset Key |
Yes |
IR & warm light Led |
|
Led |
4pcs array IR & warm Led |
Distance |
40 m (IR), 30 m (warm light) |
Lens |
|
Focal length |
2.7-13.5 mm AF |
Zoom |
5x optical zoom |
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 280°; Tilt: 0° ~ 90° |
Preset Point |
10 |
Control Speed |
Pan: 15° /s; Tilt: 15° /s |
Guard Position |
Support |
Power-off Recovery |
Support |
Network Services |
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc. |
P2P |
Yes |
Web |
IE, Firefox, Chrome, Edge, Safari |
Media |
CMS, Android, IOS |
ONVIF |
17.06 compatible |
General |
|
Network Port |
1-RJ45, 100Mbps, PoE 48V in |
Power Supply |
12 VDC ± 10% 2A |
Power Consumption |
< 15 W |
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
Size |
Φ120(mm)×110(mm) |
Weight |
0.68kg |
